Name: Aluminum full suspension MTB mountain bike frame with boost 148 thru-axle rear shock
SKU: 7367
Availability: InStock

Description

Aluminum full suspension MTB mountain bike frame with boost 148 thru-axle rear shock

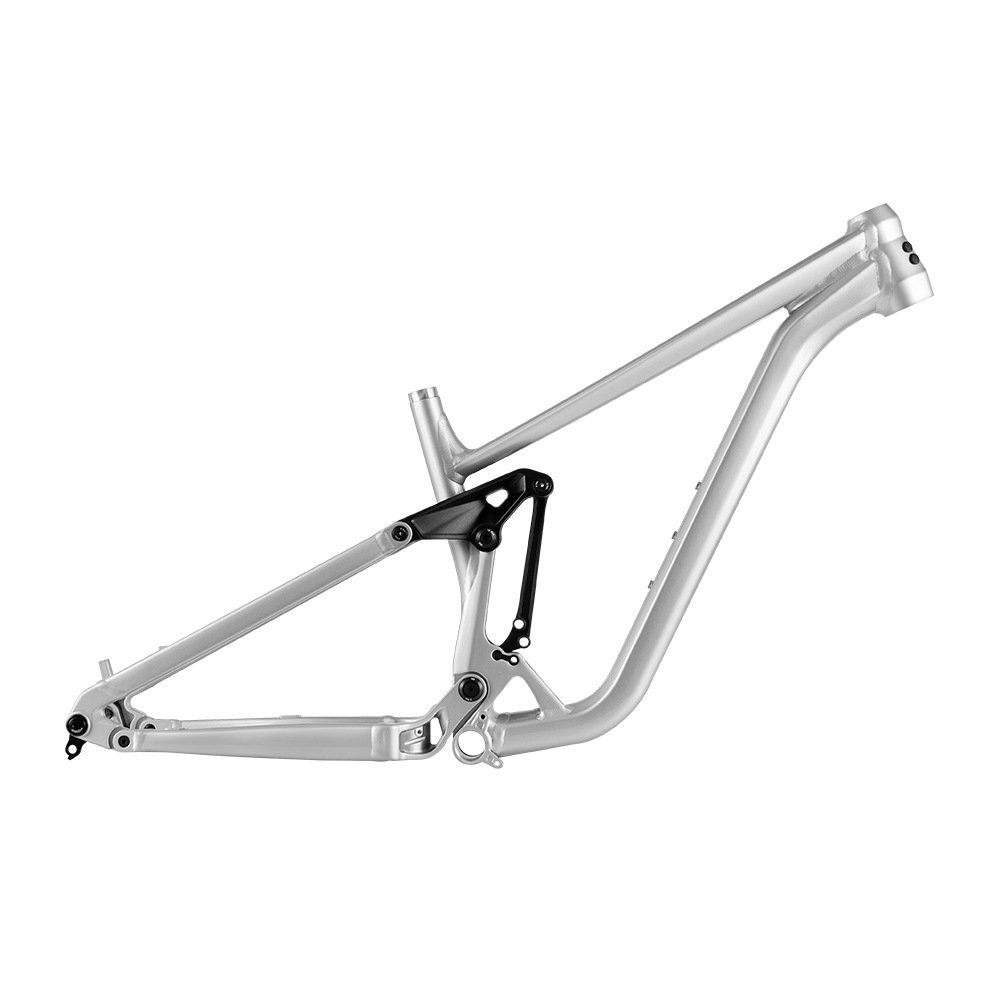

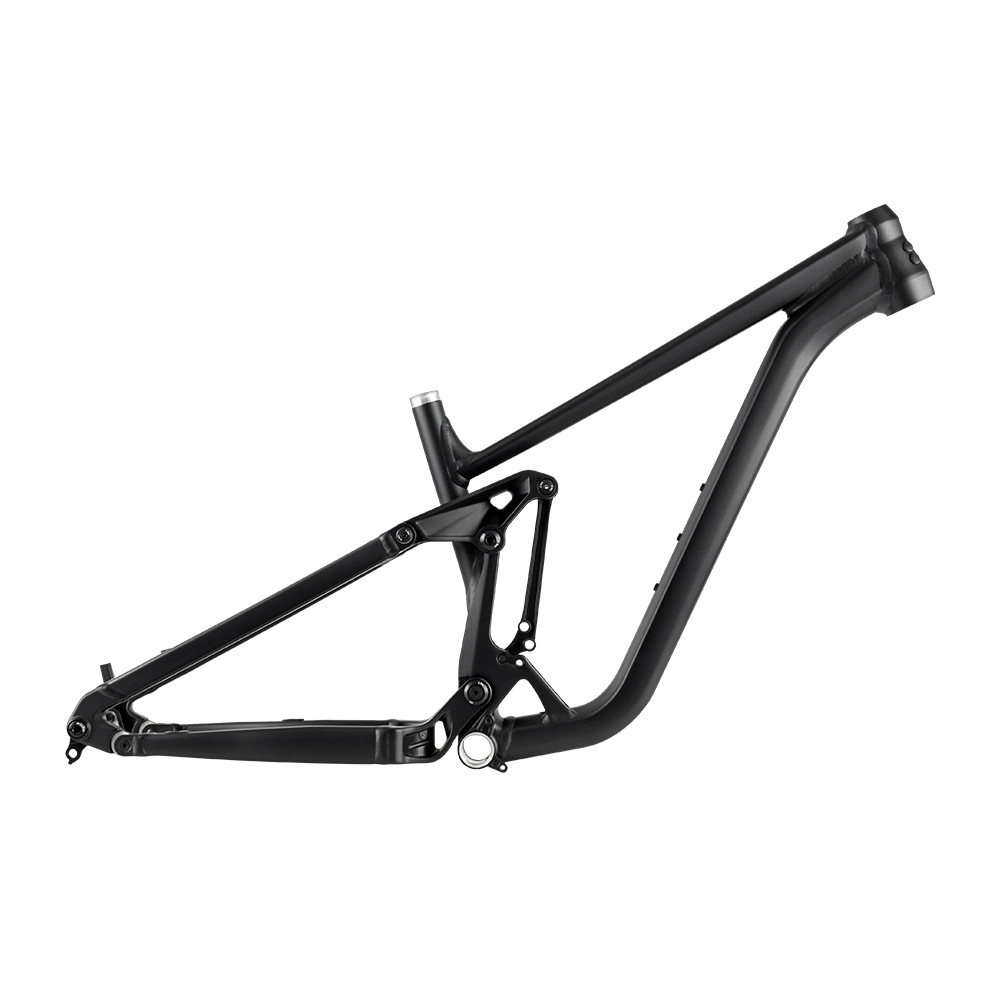

This ENDU150 full suspension mountain bike frame is built from premium AL6069 aluminum alloy,

delivering outstanding strength while controlling weight at approximately 4.59KG (excluding rear shock absorber).

Designed for aggressive trail and enduro riding, it supports both 29-inch and 27.5-inch wheels,

with maximum tire clearance up to 2.5 inches, allowing you to tackle rugged forest trails, rocky terrain and steep descents freely.

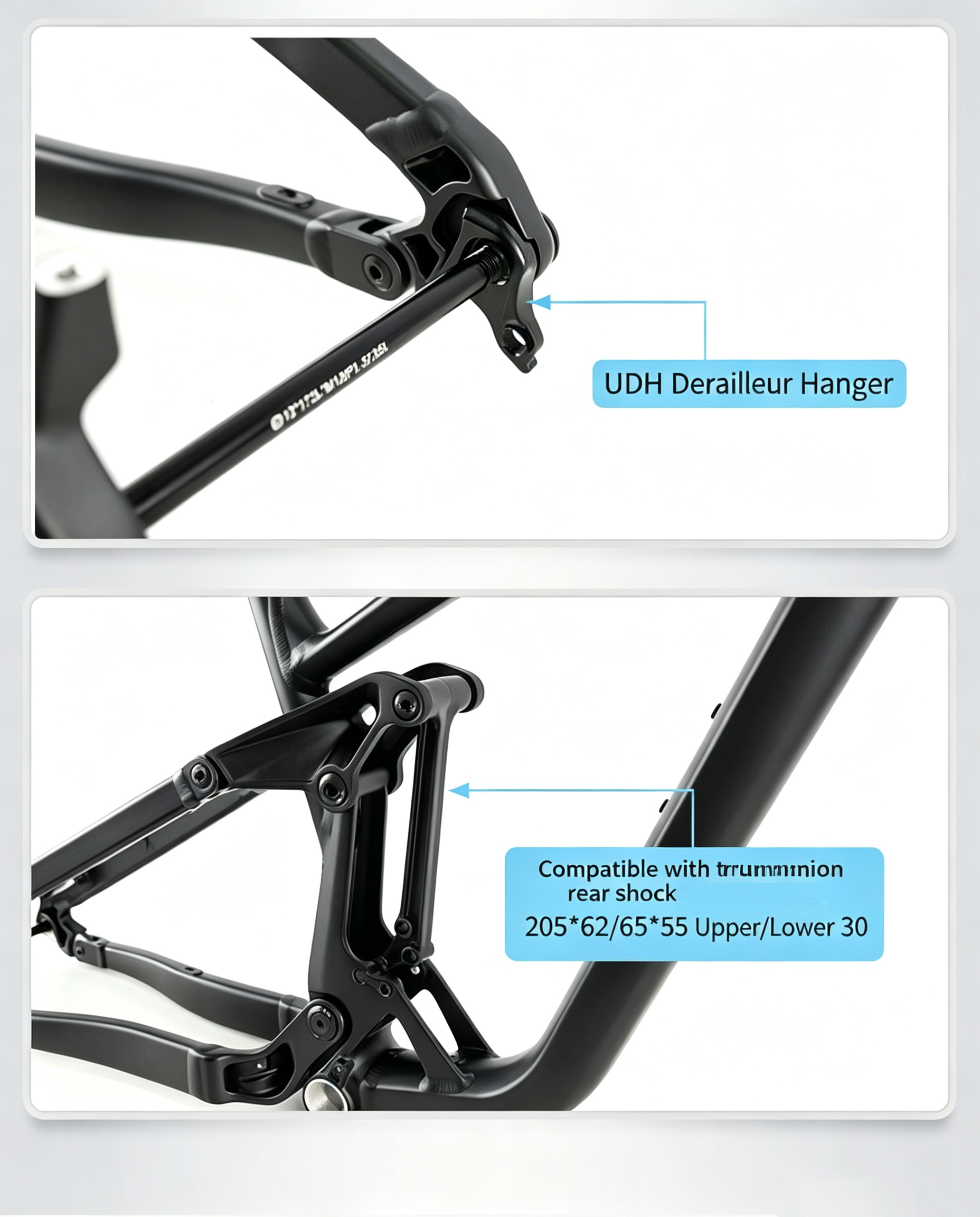

It adopts standard UDH derailleur hanger, widely compatible with modern drivetrain systems.

The frame fits trunnion-mount rear shock (20562/65mm, top 54mm / bottom 30mm),

bringing efficient shock absorption and stable traction on bumpy paths.

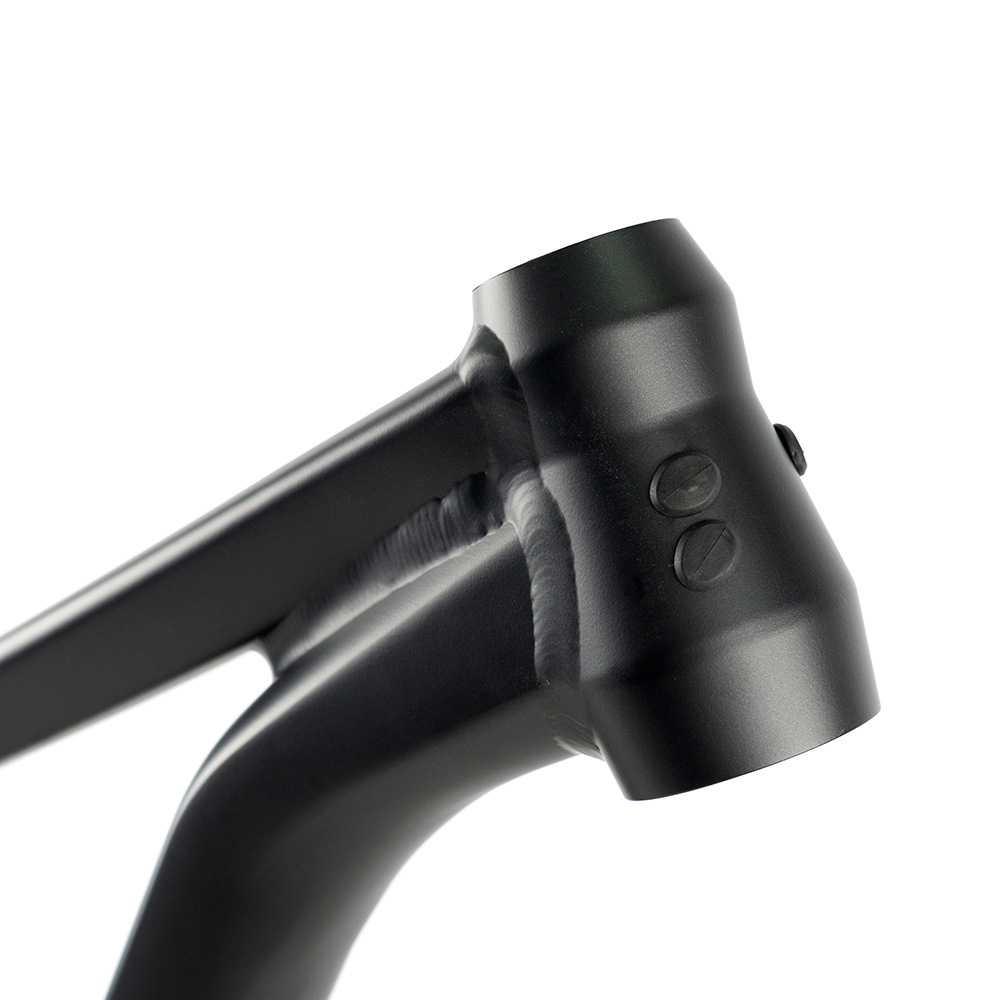

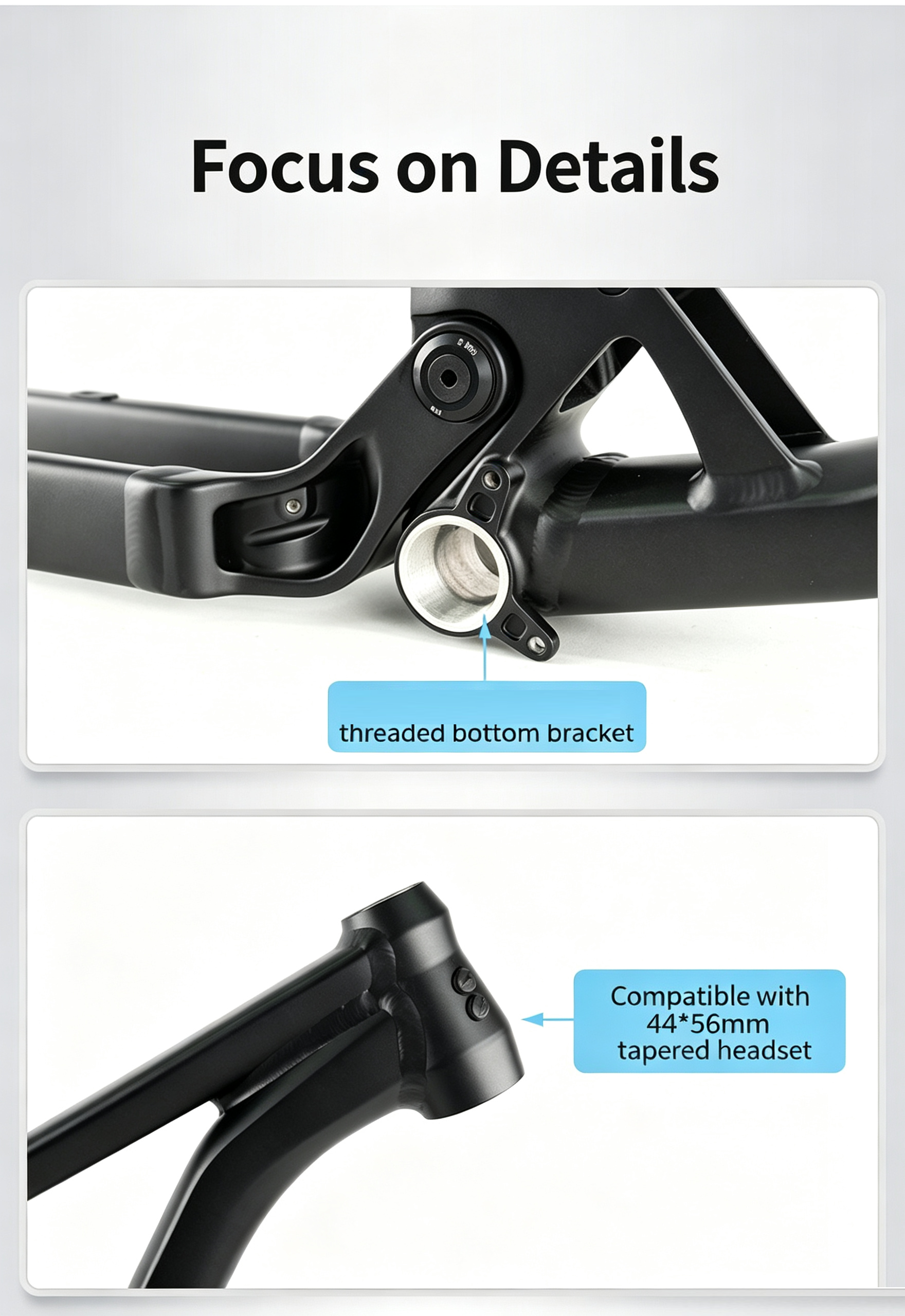

For standardized assembly, it reserves BB73 threaded bottom bracket shell, 4456mm tapered head tube,

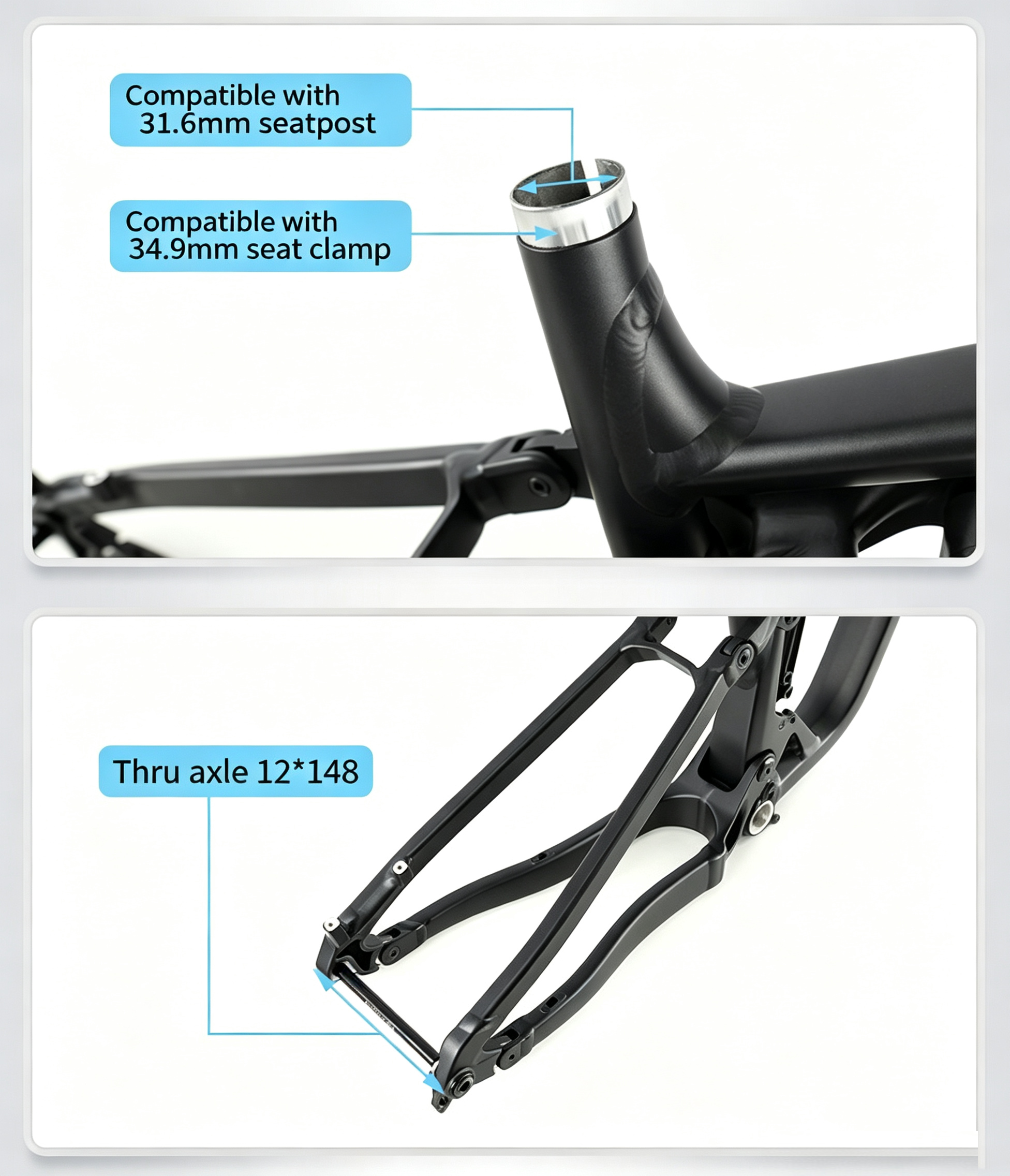

31.6mm seat tube matched with 34.9mm seat clamp,

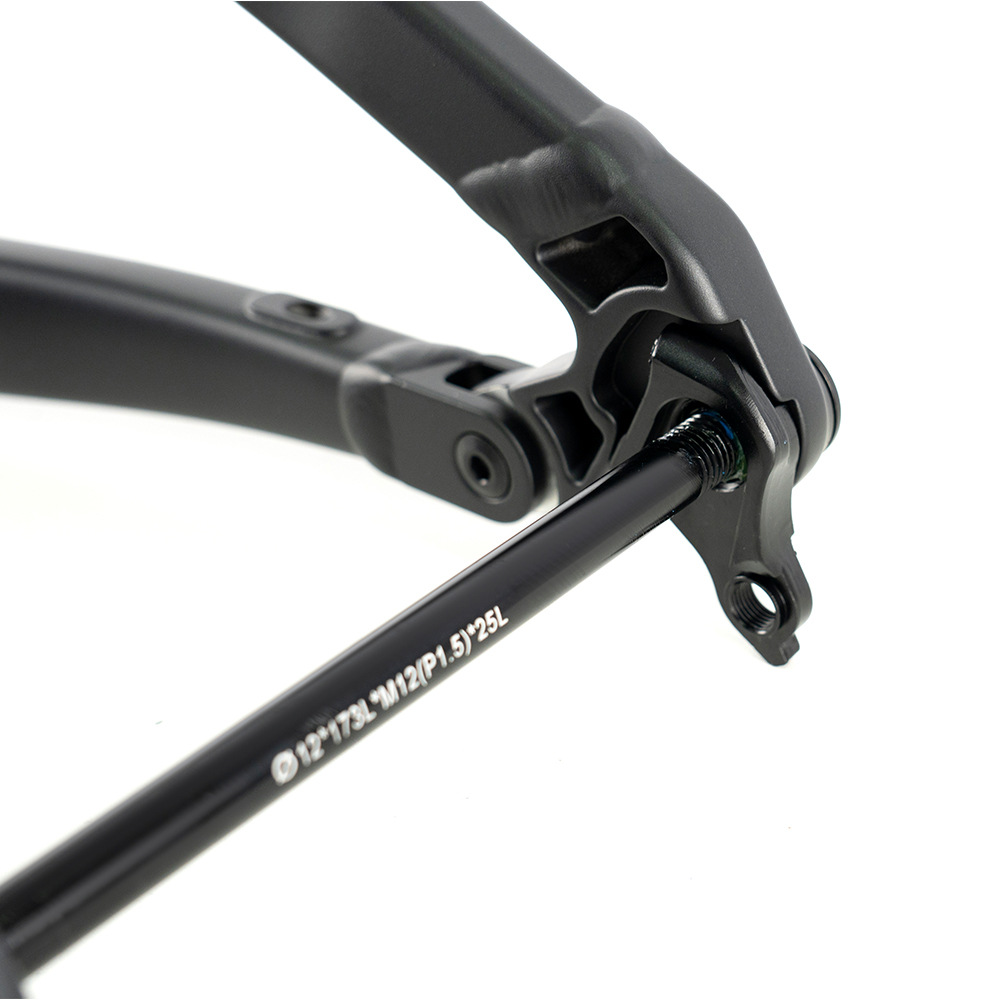

and 12*148mm thru-axle rear spacing.

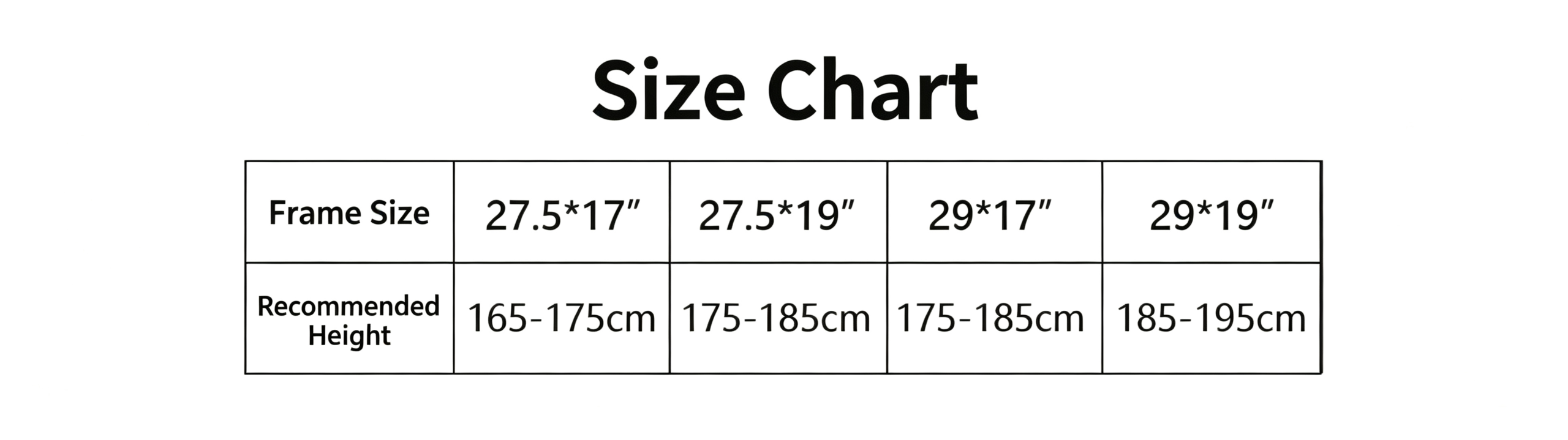

Two frame sizes (17” & 19”) are offered to fit riders from 165cm to 195cm.

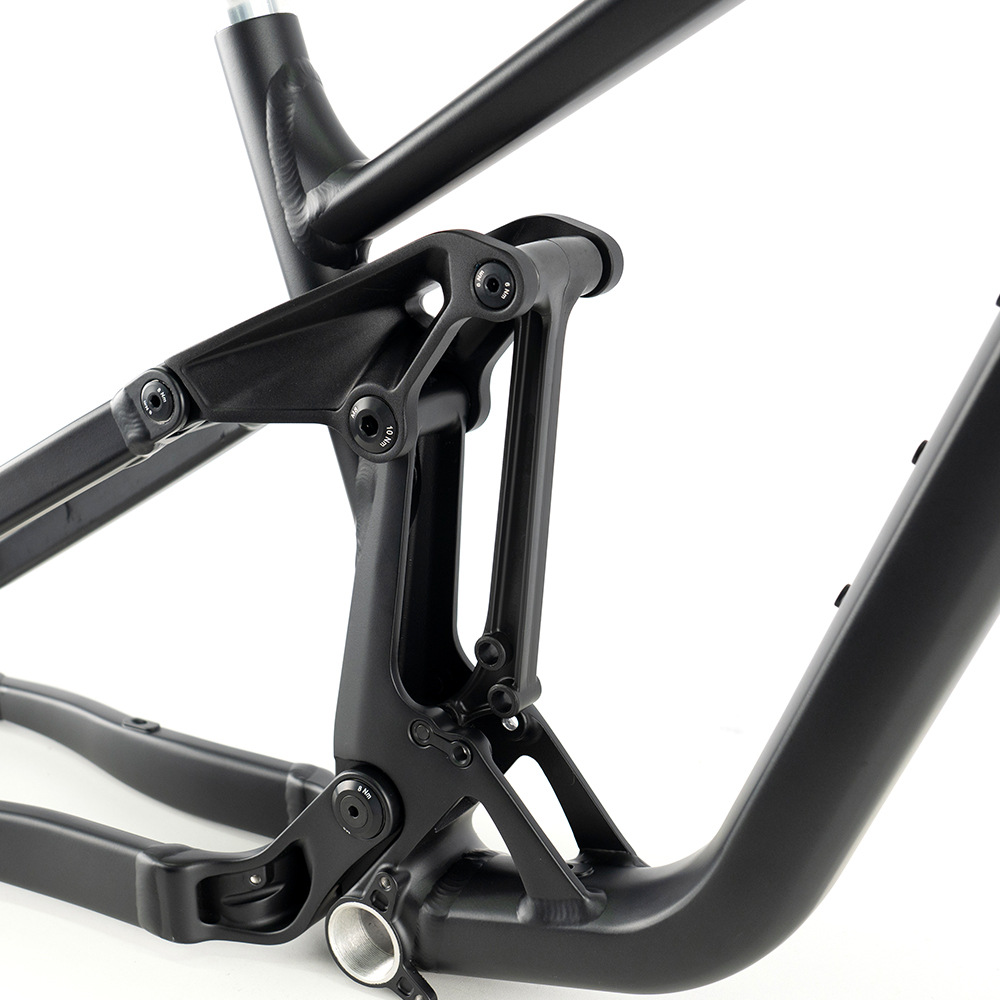

Mature linkage suspension structure balances climbing efficiency and downhill control.

Whether you are building a daily trail bike or an enduro weapon,

this aluminum softtail frame provides reliable performance with great cost advantages.

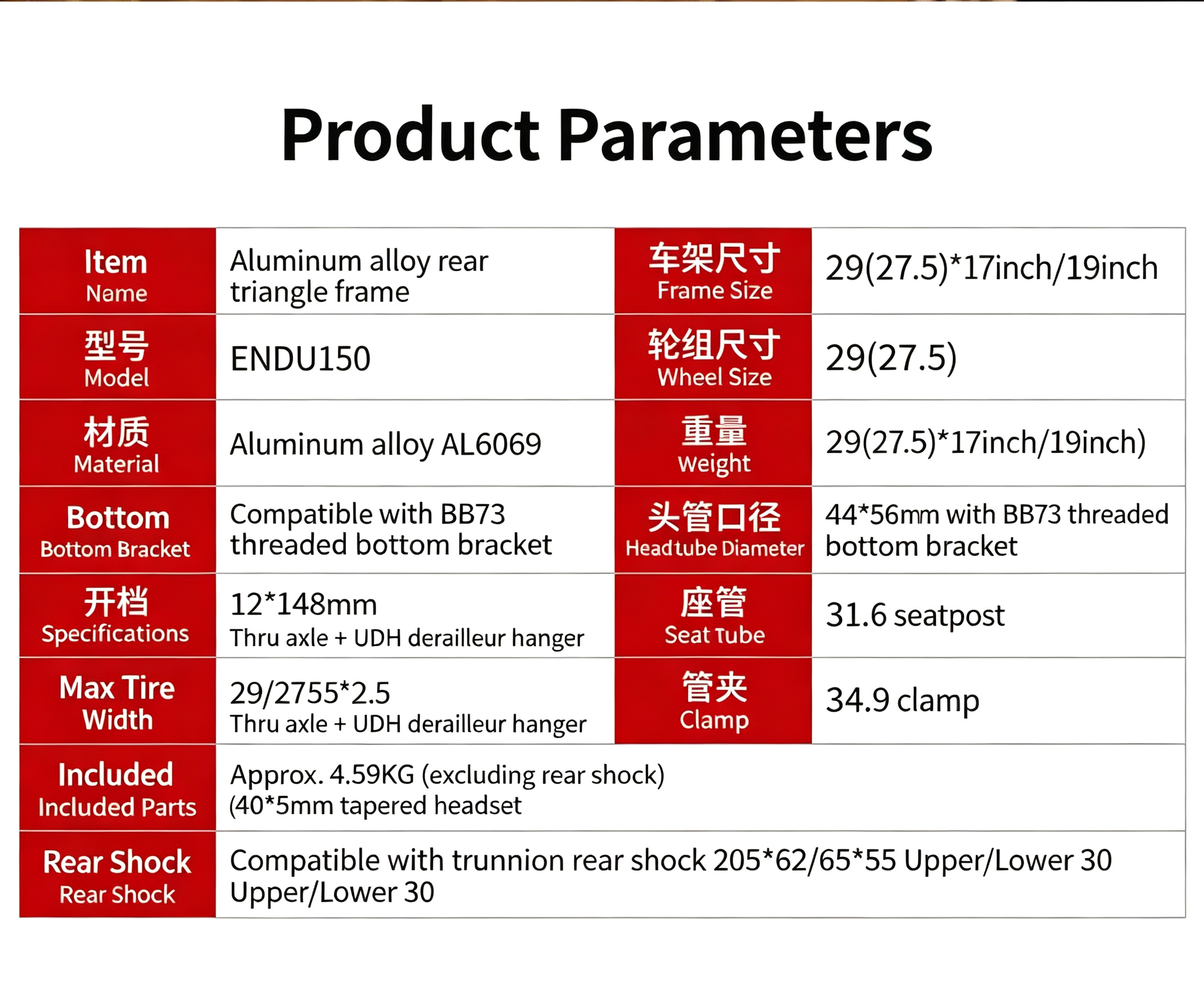

【Product Name】: ENDU150 – Aluminum Alloy Soft-Tail Mountain Bike Frame (148 Bolt Axle with Rod)

【Dimensions】: 29 (27.5) * 17 inches / 19 inches

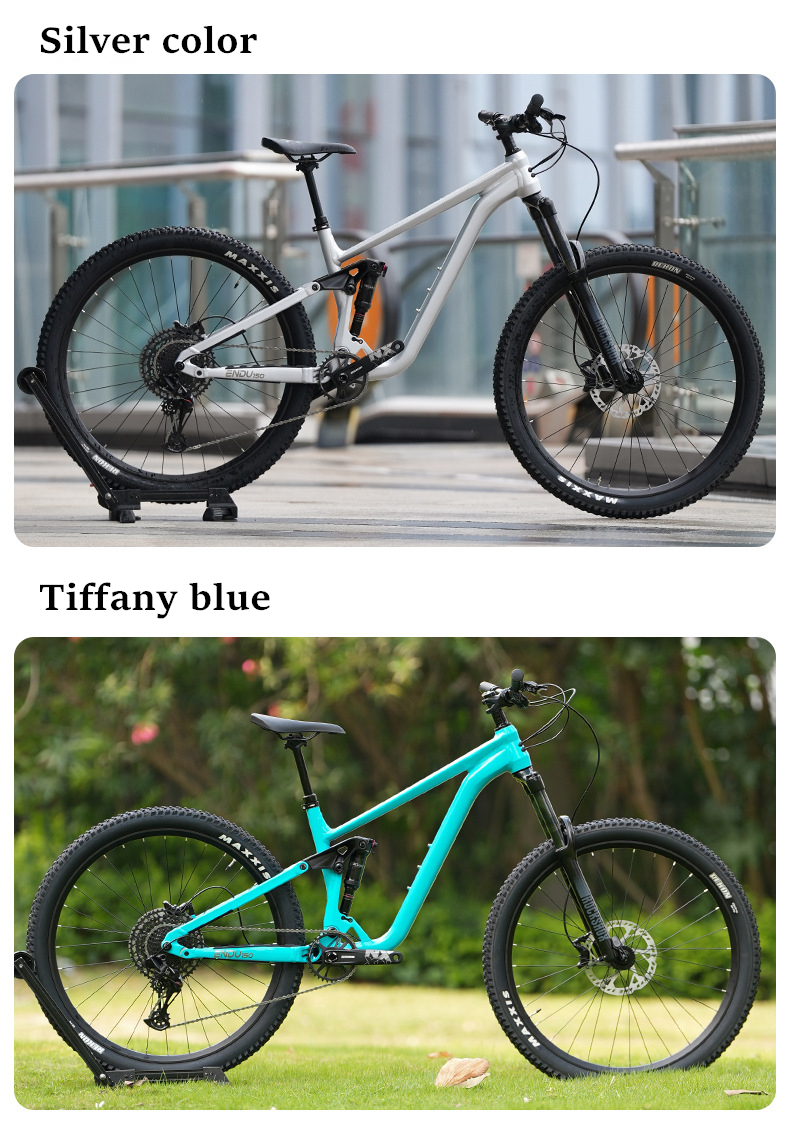

【Color】: Matte Black / Electric Silver / Tiffany Blue

【Material】: Aluminum Alloy AL6069

【Specification】: Compatible with 44*56mm tapered bottom bracket + BB73 threaded spindle + 31.6 seat tube and 34.9 chainstay,

Boost spindle 12*148, UDH tail hook, frame travel 150/160, compatible with rear seat post 205*62 / 65* upper 54 / lower 30,

compatible with fork travel 150 – 170, can accommodate maximum tire size 9/27.5*2.5″

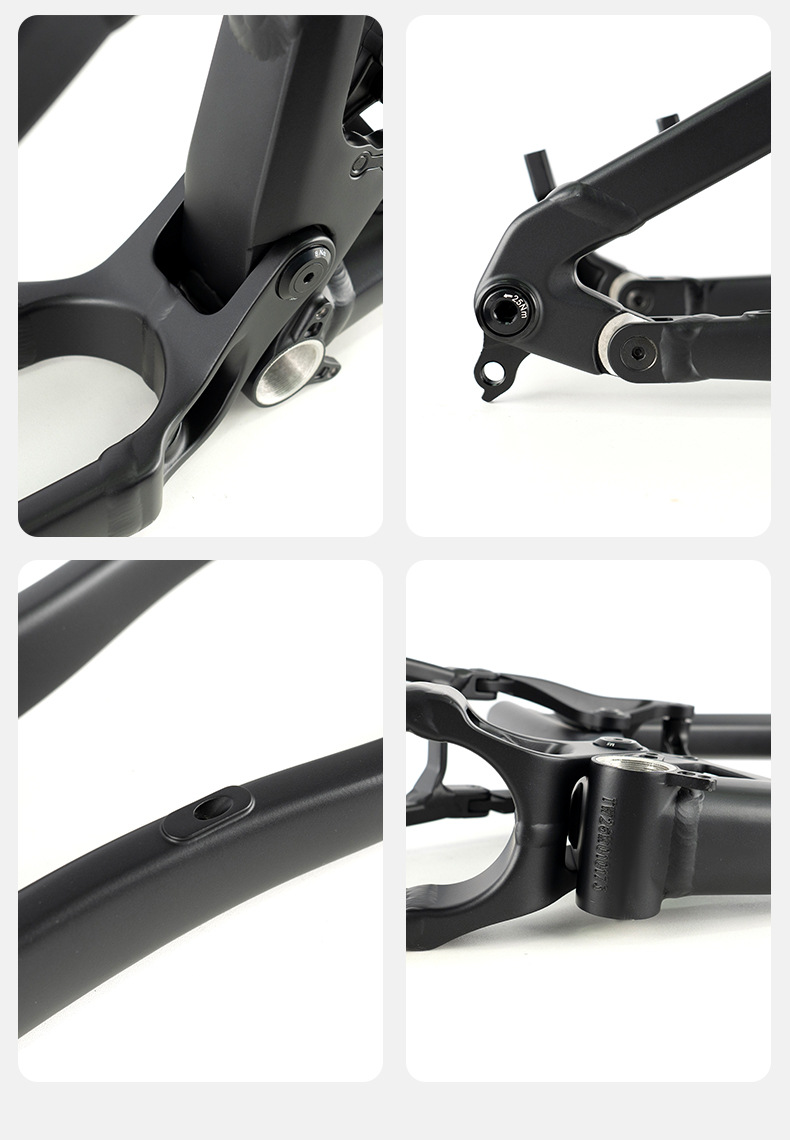

【Process】: Enduro off-road grade, flat welding, internal wiring

【Weight】: Approximately 4.59KG (excluding rear seat post)

Additional information

Color	Black, Silver, Tiffany blue
Frame size	17", 19"
